Roof Mounted Industrial Water Evaporative Air Cooler

FOB Reference Price:Get Latest Price
US $333-500 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
1000 Set/Sets per Month Ceiling Mounted Evaporative Cooler
Port:
Ningbo or Shanghai
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Evaporative Air Cooler
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
AOSUA
Model Number:
/
Operating Voltage:
380V or customized
Mounting:
Wall / Window Mount
Certification:
ISO 14001:2004 ISO9001:2008
After-sales Service Provided:
Engineers available to service machinery overseas
Blowing way:
Top discharge/side discharge/down discharge
Vent size(mm):
670*670/800*800/900*900
Air flow(m3/h):
18000/22000/28000/30000/50000
Blowing distance(m):
32/45/60/100
Power(Kw):
1.1/1.5/2.2/3/5.5
Cover area(㎡):
80-500
Net Weight(kg):
55/60/100/120
Gross Weight(kg):
80/85/150/170
Brand:
Aosua
Origin of Place:
China Zhejiang
Packaging & Delivery
Packaging Details
1.Wooden case
2.Iron frame+batten
Delivery Time
Shipped in 7 days after payment
Product Description

Working principle

Aosua evaporative coolers is one of the longest history home appliance, even elder than air conditioner.It is called desert cooler in Middle East,and also is called swamp cooler in US. The frame of evaporative cooler is very simple.Water from the bottom pan of the unit is pumped to the top and allowed to flow down over the evaporation cooling pads of the spot cooler,evenly saturating the pads,Then, a powerful blower pulls air through the pads,forcing the water to evaporate which lowers the ambient temperature.The cooler air is then blown by the unit at a high velocity where you direct the cool air to go.

DATA SHEET OF Ceiling Mounted Evaporative Cooler
18000m³/h,22000m³/h
Model
ALFJ-18F/22F
ALFJ-18D/22D
ALFJ-18E/22E
Dimension(mm)
1100*1100*950
1160*1160*960
1150*1150*960
Vent size(mm)
670*670
670*670
670*670
Air flow(m³/h)
18000/22000
18000/22000
18000/22000
Blowing distance(m)
32
32
32
Blowing way
Top/side/down
Top/side/down
Top/down
Power(kw)
1.1/1.5
1.1/1.5
1.1/1.5
Cover area(㎡)
80-120
80-120
80-120
Net Weight(kg)
55
55
55
Gross Weight(kg)
80
80
80
28000m³/h,35000m³/h,50000m³/h
Model
ALFJ-25F
ALFJ-30F
ALFJ-50F
Dimension(mm)
1100*1100*1150
1300*1300*1200
1500*1500*1430
Vent size(mm)
670*670
800*800
900*900
Air flow(m³/h)
28000
35000
50000
Blowing distance(m)
45
60
100
Blowing way
Top/down
Top/down
Top/down
Power(kw)
2.2
3
5.5
Cover area(㎡)
100-150
200-250
300-500
Net Weight(kg)
60
100
120
Gross Weight(kg)
85
150
170

Main Features

1) Double fan speeds,Top/Down/Side discharge for option.

2) Elegant cabinet design with brand new update PP material,anti-UV,anti-corrosion,anti-aging,anti-deformation.

3) Copper motor adopts high quality fully sealed alloy shell design,good heat dissipation,low temperature,high protection.

4) Professional 4 blades fan,lower noise greater wind.

5) Open-water distributor design,water flows evenly and smooth.

6)100mm and 120mm thickness high performance evaporative cooling pad for option,good cooling effect,easy to clean.

7)Automatic water control system,automatic reminder when lack of water.

Certifications
Detailed Images

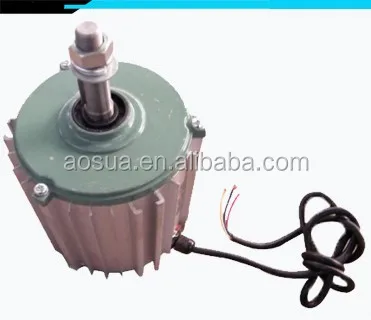

Air cooler motor

Name:Motor
Brand:AOSUA
Original: China

High quality sealed aluminum motor.Water proof and good heat dissipation performance.

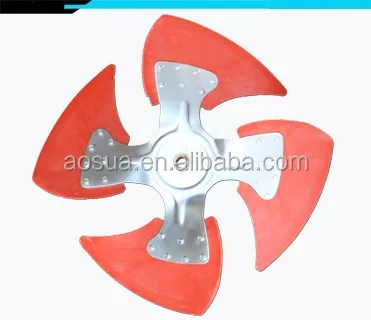

Air cooler fan


Name:Fan
Brand:AOSUA
Original: China

The fan using nickel-plating petiole with strong blade,resistant to break and large air volume.

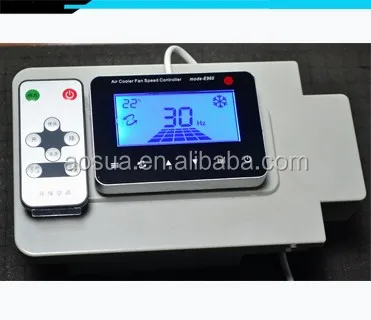

Air cooler fan speed controller


Name:Fan speed controller
Brand:AOSUA
Original: China

Acrylic superhard big-screen LCD display.
Automatic cleaning time can be set freely.
Timing on/off.
Water shortage alarm.

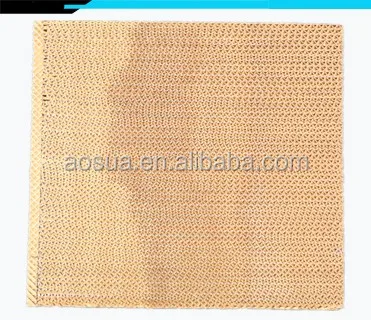

Air cooler cellulous pad


Name:Cellulous pad
Brand:AOSUA
Original: China

Using high density water paper.It have advantage of heighten water-absorbing capacity,fast cooling,fine workmanship,no burr and watertight.

Other Products

Click to see

ALFJ-18F/22F [Top discharge]
18000m³/h &22000m³/h


ALFJ-18D/22D [Side discharge]
18000m³/h &22000m³/h


ALFJ-18E/22E [Down discharge]
18000m³/h &22000m³/h


ALFJ-25F [Top discharge]
28000m³/h


ALFJ-30F [Down discharge]
30000m³/h


ALFJ-50F [Top discharge]
50000m³/h


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Design scheme support.

* View our Factory.

After-Sales Service

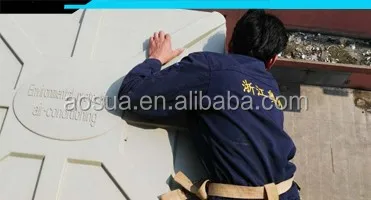

* Porvide install photo or video if necessary.

* Engineers available to service machinery overseas.

* Long warranty period

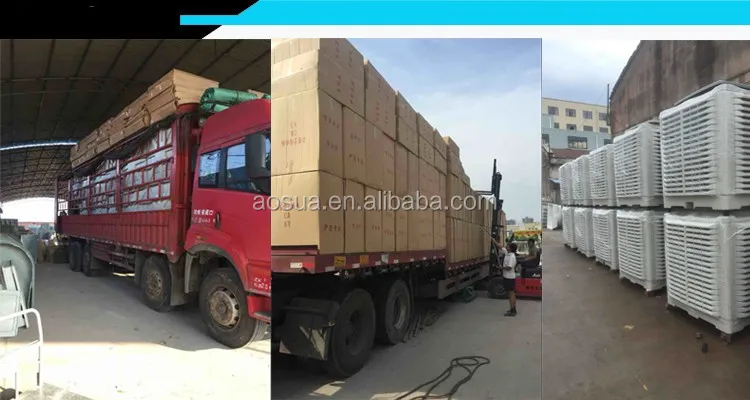

Packing & Delivery

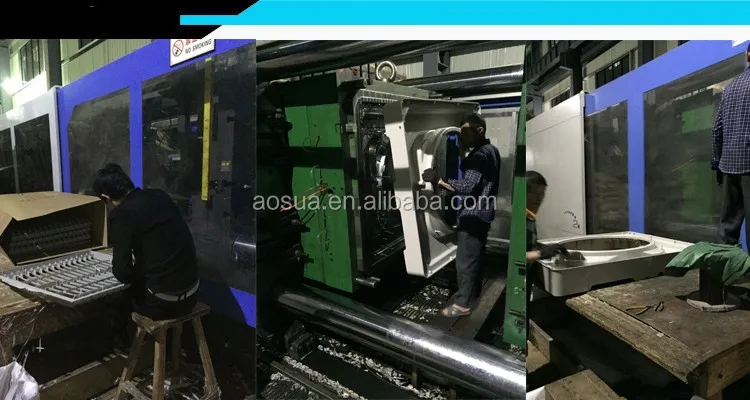

Production
